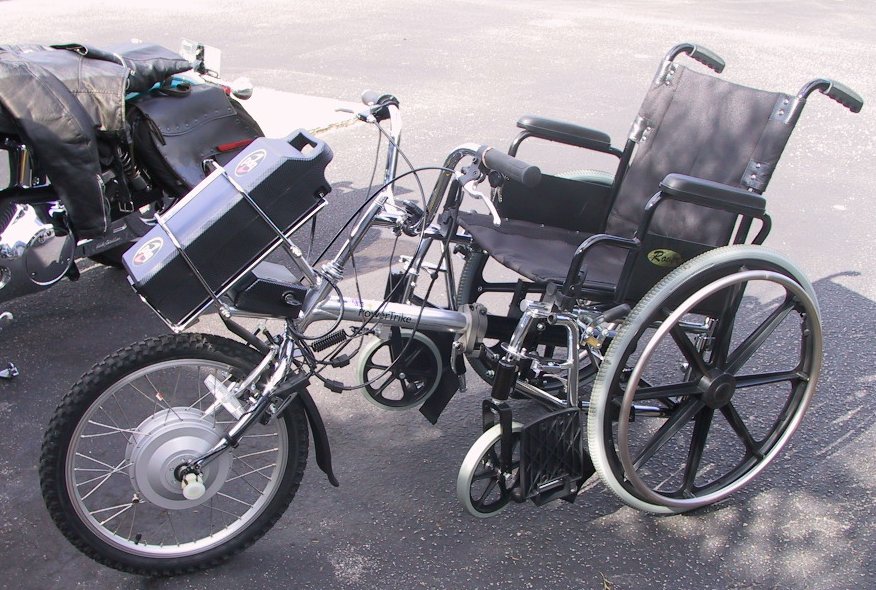

The Power Trike
This is the hottest new mobility item on the
market today! The Power Trike is a complete unit that includes a
wheel, motor and battery pack that can be attached to virtually any
manual wheelchair (standard folding or sports chair). With top speeds
of 11 mph, powerful 150 watt brush motor and 20" wheel for
traveling over rough terrain, the power trike will turn your manual wheelchair into
a powerful on or off road form of electric transportation. With the
Power Trike you can boldly go where few manual wheelchairs have gone
before, such as over firm sand, across fields and cruising down off
road paths!
Reg. - $1799.00 SALE -
$995.00
Power Trike Assembly

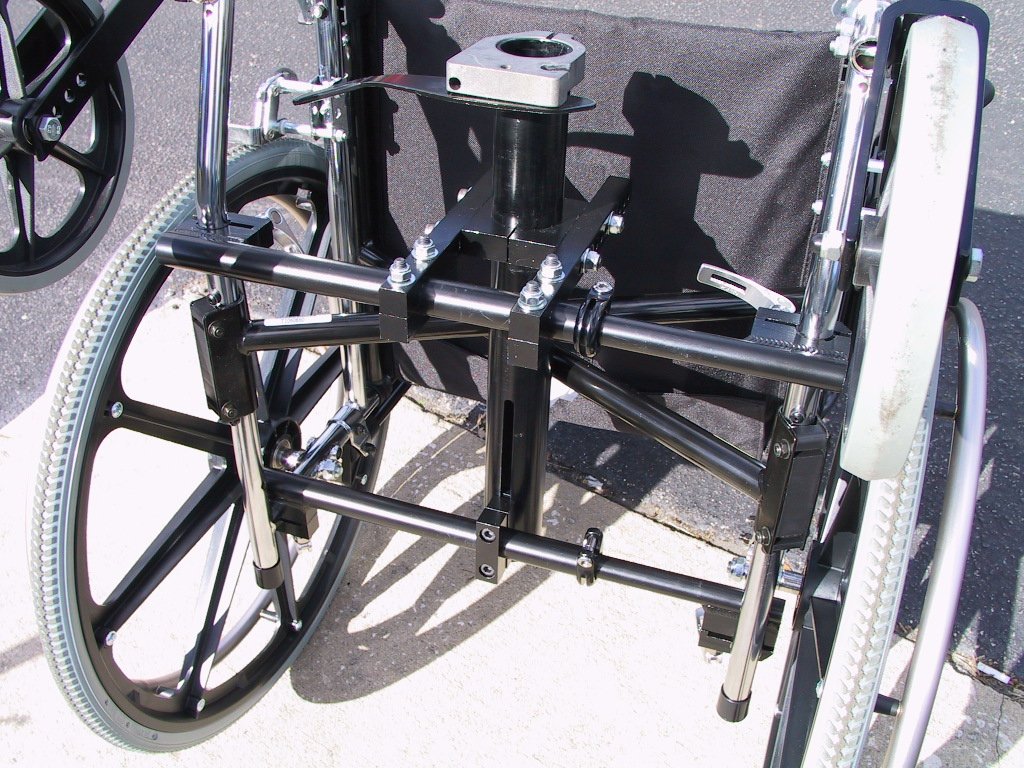

Step 1... The PowerTrike comes complete with a docking
device for either a folding wheelchair or a rigid frame
wheelchair. Attach the docking device to your manual wheelchair.
Complete assembly instructions are included with the PowerTrike.
Step 2…
Position the PowerTrike next to your wheelchair, making sure
that the wheelchair brakes are on.
Step 3…
Position the PowerTrike and introduce the Connecting Tube into
the Docking Tube under the wheelchair.
Step 4…
Hold the handlebars by one handgrip, sit back in the wheelchair
seat as far as possible, hold the wheelchair with your other
hand, and rotate the PowerTrike into the vertical position.
Please ensure that the Docking Clamp Lock has engaged with an
audible click. If not, please release the Docking Clamp and
retry.
Step 5…
Secure the Safety Catch. Do not proceed until you are certain
that the Safety Catch is deployed.
Step 6...
Slide the recently-charged Battery Pack into the Battery
Carrier, ensuring that the Battery Pack Locator Screws are
sliding easily in the Battery Carrier Screw Guides; connect the
Battery Lead to the Battery Socket.
Step 7...
Insert the key into the Power Switch on the right hand side of
the Control Box and select position 1 (Low Power) (recommended
for pedestrian areas) or position 2 (Full Power), then remove
the key.
Step 8...
Insert the key into the Driving Switch on the left-hand side of
the Control box, turn the power "On". Check the
Battery Condition Indicator, it should show Red, Amber &
Green lamps lit when the Battery Pack is fully charged. Drive
away and have fun!
Specifications
Front Wheel
20 inch to
overcome rough terrain and double skinned to facilitate
dual braking
Frame
Manufactured
from 7005 aircraft grade light weight aluminum
Range
15-20 miles
on one full charge*
Speed
11 mph
Battery
sealed lead
acid gel - maintenance free (recharges in 1-4 hours)
Brakes
Dual Twin
caliper brakes, right hand with park facility, left hand
brake (not shown) with power cut out facility
Motor
150 watt
power output brush motor
Turning
Radius
53"
Weight
w/out battery
24
lbs.
Battery
Care
Never let
the battery completely discharge.
After the
first 5 or 6 charges you will then find that the battery
will then be at a maximum charge.
If
PowerTrike is only used for short journeys (less than a
mile) there is no need to recharge only after several
short journeys or when you are showing red segments on
the LED display.
You can
never over charge the battery by leaving it connected,
it will only benefit from this.
Routine
Maintenance
Recharge
the battery after each journey. Do not run the battery
flat or you will destroy the cells.
Apply a
little metal polish to the end of the Connecting Tube if
you have any difficulty in connecting or disconnecting
the PowerTrike.
Clean the
reflectors with a soft cloth and soapy water; avoid
abrasive cleaners. Wipe dry after cleaning.
Check and
adjust the brakes as necessary
Order
your FREE VIDEO on the PowerTrike
Call TODAY 1-800-449-8991
Using your power trike
The PowerTrike™ is extremely easy to drive, but like all vehicles it
takes a little getting used to. The following tips will make you and
your PowerTrike™ a team in a very short time.
Practice in a private "Off Road" space until you get used to
the PowerTrike. This unit accelerates from a standing start very quickly. So turn
the accelerator grip cautiously. For the same reason, start your first
practice with the front wheel pointing straight forward and give
yourself plenty of space. If at anytime you want to stop the PowerTrike,
reduce the throttle and apply the brake.
The PowerTrike turns virtually in its own length but this should not
be done at high speed. So try a few turns at low speeds in a wide area until
you get used to it.
The PowerTrike is designed for enjoyment but please treat it with due
respect and judgment and keep the speed at a reasonable rate in crowded
area's.
Each and every PowerTrike™ is designed and manufactured to
ISO9002 quality standards in one of the world's most modern
factories.
Our policy is of continuous improvements, so specification is
subject to change without prior notice.
